Classic Round:4” round retrofit kit for use with existing IC housings installed by a licensed electrician. The kit will consist of two parts:

  1. Perforated metal disc attached to collar with a pin

  2. Die-cast aluminum baffle with slot

To remove the baffle from the collar and begin installation, hold the disc in one hand and twist the baffle from the bottom counter clockwise with the other hand until it releases.

The baffle and collar protrude slightly from the disc. This is to allow room for the drywall joint compound.

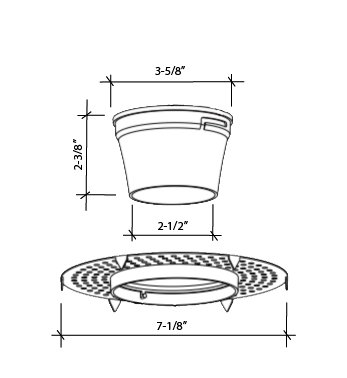

round baffle & collar dimensions.png

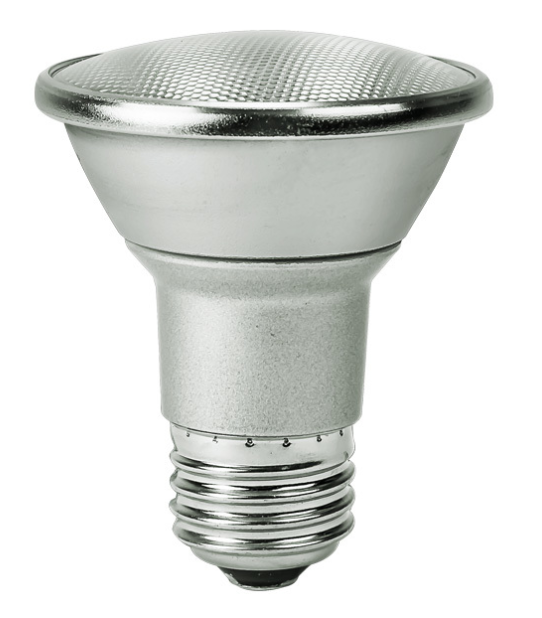

PAR 20 LED BULB  (SOLD SEPARATELY)

PAR 20 LED BULB

(SOLD SEPARATELY)

Model 1 Parts.png

Retrofit Instructions:

  1. Prior to installation (when applicable) adjust the socket bracket inside the existing 4” IC housing to a position as close to the base of the housing as possible

  2. Insert the collar of the perforated disk into the housing by pushing the spikes into the drywall (tap gently with a rubber mallet if needed) until the disk is flat against the ceiling. For best results use blue painters tape to protect the inside of the collar from excess joint compound and paint

  3. Apply two coats of fast drying drywall joint compound to conceal the perforations using the lip around the collar as a stop

  4. Sand and paint

  5. Insert a PAR 20 LED bulb into the housing socket

  6. Insert the baffle by aligning the slot with the collar pin and turn clockwise until it locks

square retrofit simple diagram.png

New Square: 4” retrofit kit for use with existing IC housings installed by a licensed electrician. The kit will consist of two parts:

  1. Perforated metal sheet attached to a square collar with spring shims

  2. Die-cast aluminum baffle with 4 shim cutouts

    For installation follow retrofit instructions 1,2, 3, 4 & 5 and insert the square baffle by aligning the baffle cutouts with the spring shims attached to the collar and push the baffle until it clicks in place.
